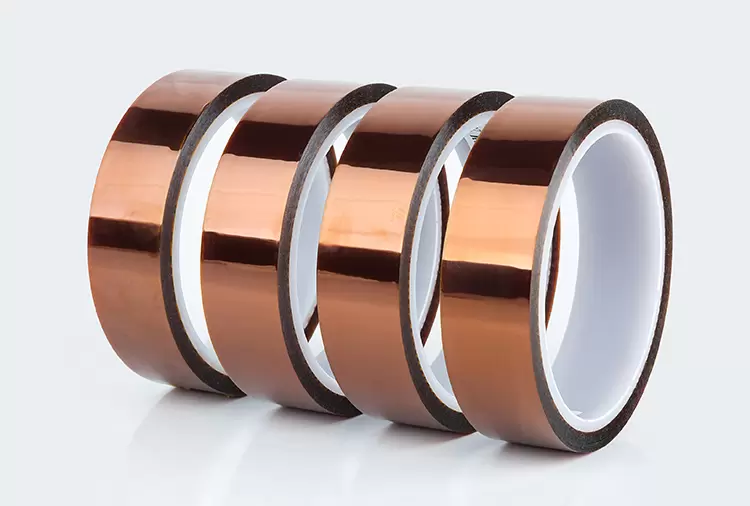

Tab Insulation TapeK-A04D1
Tab Insulation Tape
The high-performance insulation tape, specially designed for lithium battery cells, is composed of electrolyte-resistant special adhesive and high-stability polyimide substrate. It maintains excellent performance in the harsh internal environment of the battery, effectively protects the tab solder joints, improves the overall safety of the battery cell, and serves as a key auxiliary material to ensure the stable operation of the battery.
Quick Specifications
| Item NO | Colour |
Total Thickness (mm) |
Max Width (mm) |
Max Length (M) |
MOQ (m²) |
Initial Tack (N/25mm) |
180° Peel Adhesion (N / 25mm) |
|---|---|---|---|---|---|---|---|
| KA04D1 | Amber | 0.045± 0.005 | 1020 | 500~2000M ( can be customized) | 2000 | 1↑ | 3↑ |
Additional Specifications
| Backing Material | PI |
|---|---|
| Backing Thickness (mm) | 0.025 |
| Type of adhesive | Acrylic |
| Thickness of release liner | 0.050±0.005 |
| Holding power (h) | 24↑ |
| Elongation at break (%) | 25↑ |
| Tensile strength (Mpa) | 70↑ |
| Temperature resistance (℃/30mins) | 130 |
| Voltage resistance (kV) | 3 |
| Inside Dianeter of Roll (±1mm) | 77±1mm |
| Exclusive Perfornance Paraneters | 72h electrolyte resistance, no peeling, no delamination. |
Key Features
Comes off clean
Superior electrolyte resistance
Excellent high temperature resistance
Our products comply with RoHS standards. Test reports are available upon request.
Storage Condition
Store at room temperature, away from light. The temperature should be 15-28℃, and the humidity should be 40%-70%.
Additional Information
Please select the appropriate product based on battery type (cylindrical / prismatic / pouch), precise application position (tab / electrode assembly / casing), as well as operating temperature and electrolyte resistance requirements. For detailed specifications, please contact our sales engineers to receive the most suitable model recommendation.
