| Item NO | Colour |
Total Thickness (mm) |
Max Width (mm) |
Max Length (M) |
MOQ (m²) |
Initial Tack (N/25mm) |
180° Peel Adhesion (N / 25mm) |
|---|---|---|---|---|---|---|---|

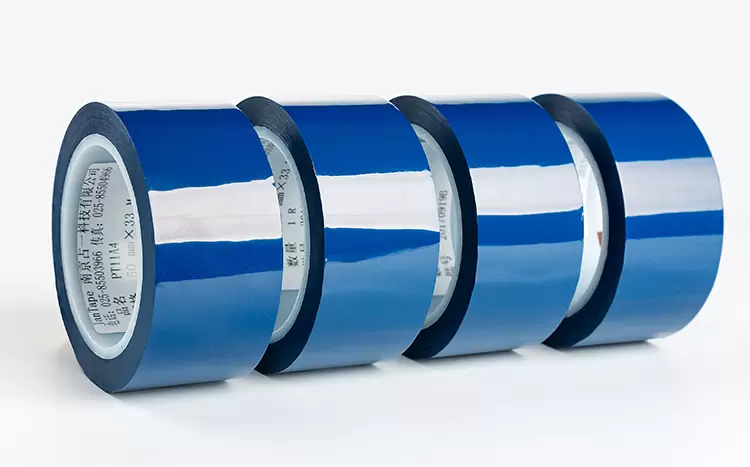

| PT05BL8 | Blue | 0.050±0.005 | 1020 | 500~2000M ( can be customized) | 2000 | ≥5 | 4-9 |
| Backing Material | PET |
|---|---|
| Backing Thickness (mm) | 0.025 |
| Type of adhesive | Acrylic |
| Elongation at break (%) | ≥20 |
| Tensile strength(N/25mm) | ≥60 |
| Temperature resistance (℃/30mins) | 120 |
| Inside Dianeter of Roll (±1mm) | 77±1mm |
| Non-Standard Metrics | unwinding force 0.5~2.5 N/25mm |
| Exclusive Perfornance Paraneters | Resistance ofthe electrolyte 85℃/4H |
Reliable flame retardant performance
Superior electrolyte resistance
Excellent high temperature resistance
Our products comply with RoHS standards. Test reports are available upon request.
Store at room temperature, away from light. The temperature should be 15-28℃, and the humidity should be 40%-70%.
Please select the appropriate product based on battery type (cylindrical / prismatic / pouch), precise application position (tab / electrode assembly / casing), as well as operating temperature and electrolyte resistance requirements. For detailed specifications, please contact our sales engineers to receive the most suitable model recommendation.
