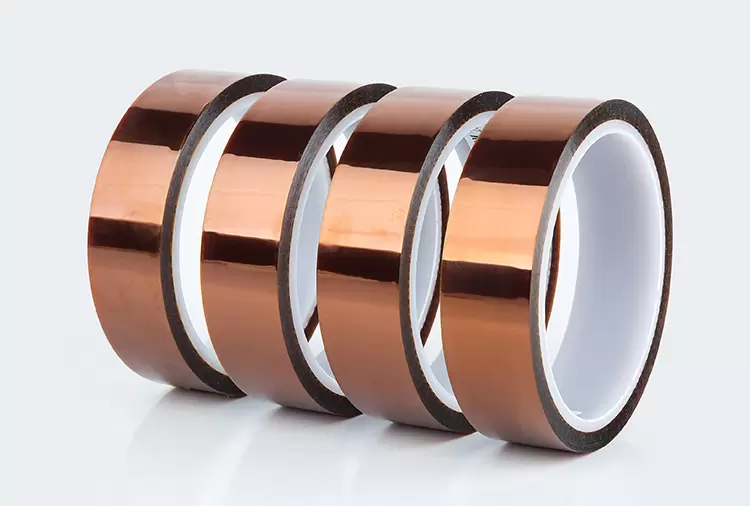

Featuring a high-performance polyimide (PI) film as its substrate, coated with high-temperature-resistant silicone pressure-sensitive adhesive, this product integrates the exceptional heat resistance, mechanical strength and electrical insulation properties of PI film with the superior weather resistance, flexibility and residue-free performance of silicone adhesive.
It serves as a critical material for fulfilling bonding, insulation and protection requirements in extreme operating environments.
| Item NO | Colour |
Total Thickness (mm) |
Max Width (mm) |
Max Length (M) |
MOQ (m²) |
Initial Tack (N/25mm) |
180° Peel Adhesion (N / 25mm) |
|---|---|---|---|---|---|---|---|
| KA05F15 | Amber | 0.050±0.005 | 1020 | 500~2000M ( can be customized) | 2000 | ≥1 | ≥5 |
| Backing Material | PI |
|---|---|
| Backing Thickness (mm) | 0.025 |
| Type of adhesive | Silicone |
| Holding power (h) | ≥12 |
| Elongation at break (%) | ≥35 |
| Tensile strength (Mpa) | ≥70 |
| Temperature resistance (℃/30mins) | 260 |
| Inside Dianeter of Roll (±1mm) | 77±1mm |
Comes off clean
Easy to remove
Excellent high temperature resistance
Our products comply with RoHS standards. Test reports are available upon request.
Store at room temperature, away from light. The temperature should be 15-28℃, and the humidity should be 40%-70%.
Please describe your application scenario, operating temperature, processing technology, and required performance parameters (such as thickness, initial tack, peel strength, etc.) in detail to our sales engineers.
The more detailed the information you provide, the more accurately we can match the suitable product model, allowing us to quickly deliver the optimal adhesive solution for you.
