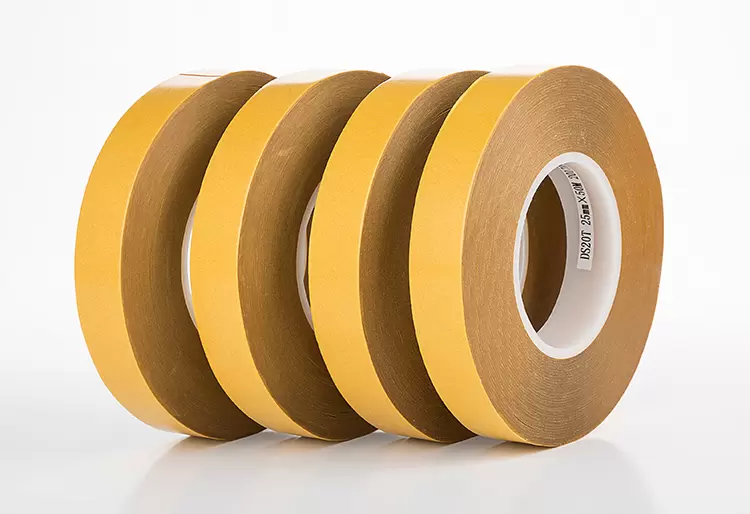

Specialty Double-Sided Tape-DS18T
Specialty Double-Sided Tape
Polyester Double-Sided High-Temperature Tape uses PET polyester film as the core material, coated with acrylic adhesive on both sides. Features: ultra-thin and flat, high-temperature resistant, no residue, good insulation, and firm double-sided adhesion, specially designed for fixing precision electronic components. Long-term temperature resistance is 120℃. Main applications: double-sided fixing of internal components of mobile phones/tablets/headphones, FPC, PCB, and insulating adhesion of battery accessories.
Quick Specifications
Item NO Colour Total Thickness
(mm)
Max Width
(mm)
Max Length
(M)
MOQ
(m²)
180° Peel Adhesion
(N / 25mm)
DS18T Brown 0.160±0.005 1020 500~2000M ( can be customized) 2000 ≥15
Additional Specifications
Backing Material PET
Type of adhesive Acrylic
Holding power (h) ≥12
Temperature resistance (℃/30mins) 120
Ball Tack 14# , ≤100mm
Inside Dianeter of Roll (±1mm) 77±1
Key Features
Comes off clean

Comes off clean

Easy to remove

Easy to remove

Excellent high temperature resistance

Excellent high temperature resistance

Our products comply with RoHS standards. Test reports are available upon request.

Our products comply with RoHS standards. Test reports are available upon request.

Storage Condition

Store at room temperature, away from light. The temperature should be 15-28℃, and the humidity should be 40%-70%.

Additional Information

Please describe your application scenario, operating temperature, processing technology, and required performance parameters (such as thickness, initial tack, peel strength, etc.) in detail to our sales engineers.

The more detailed the information you provide, the more accurately we can match the suitable product model, allowing us to quickly deliver the optimal adhesive solution for you.
