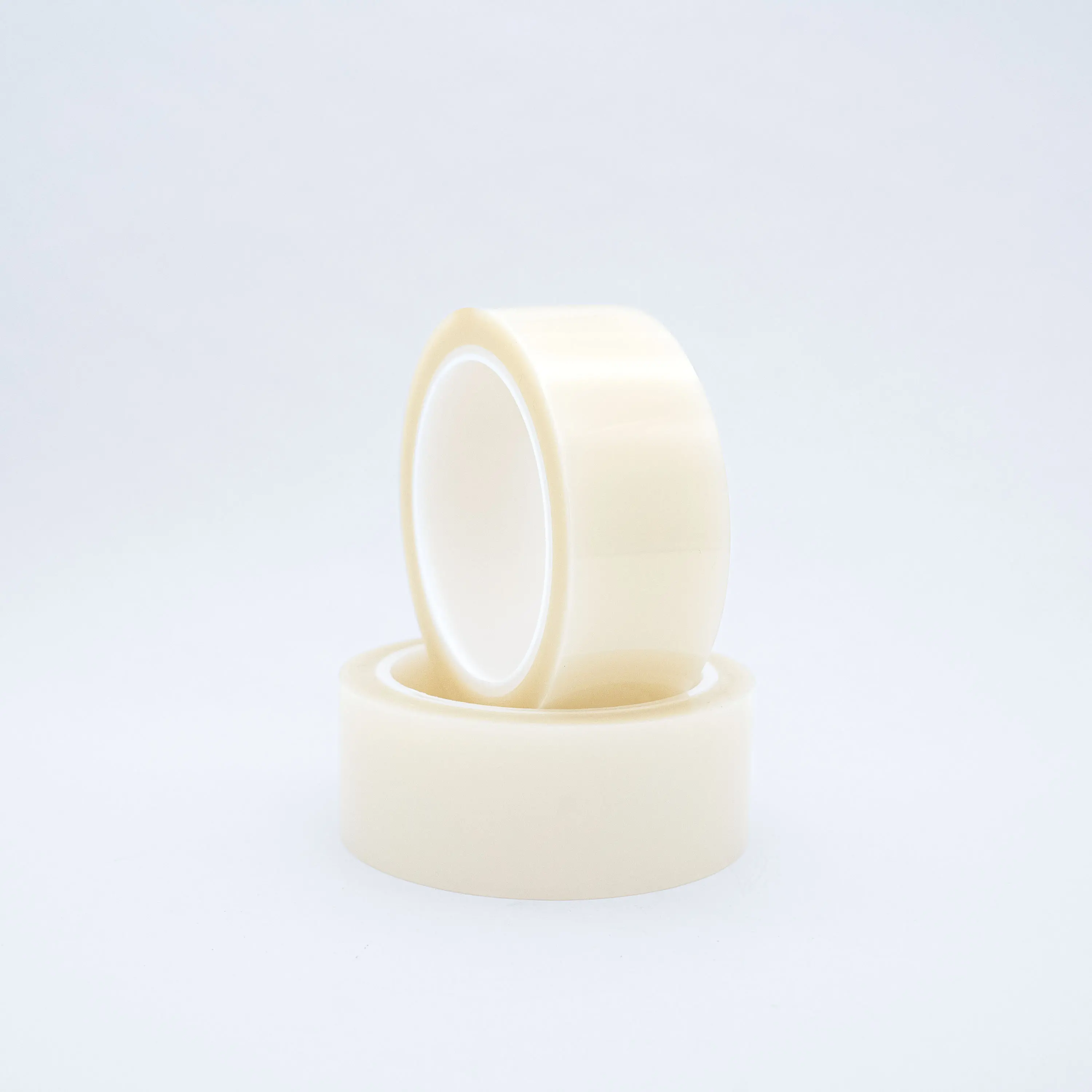

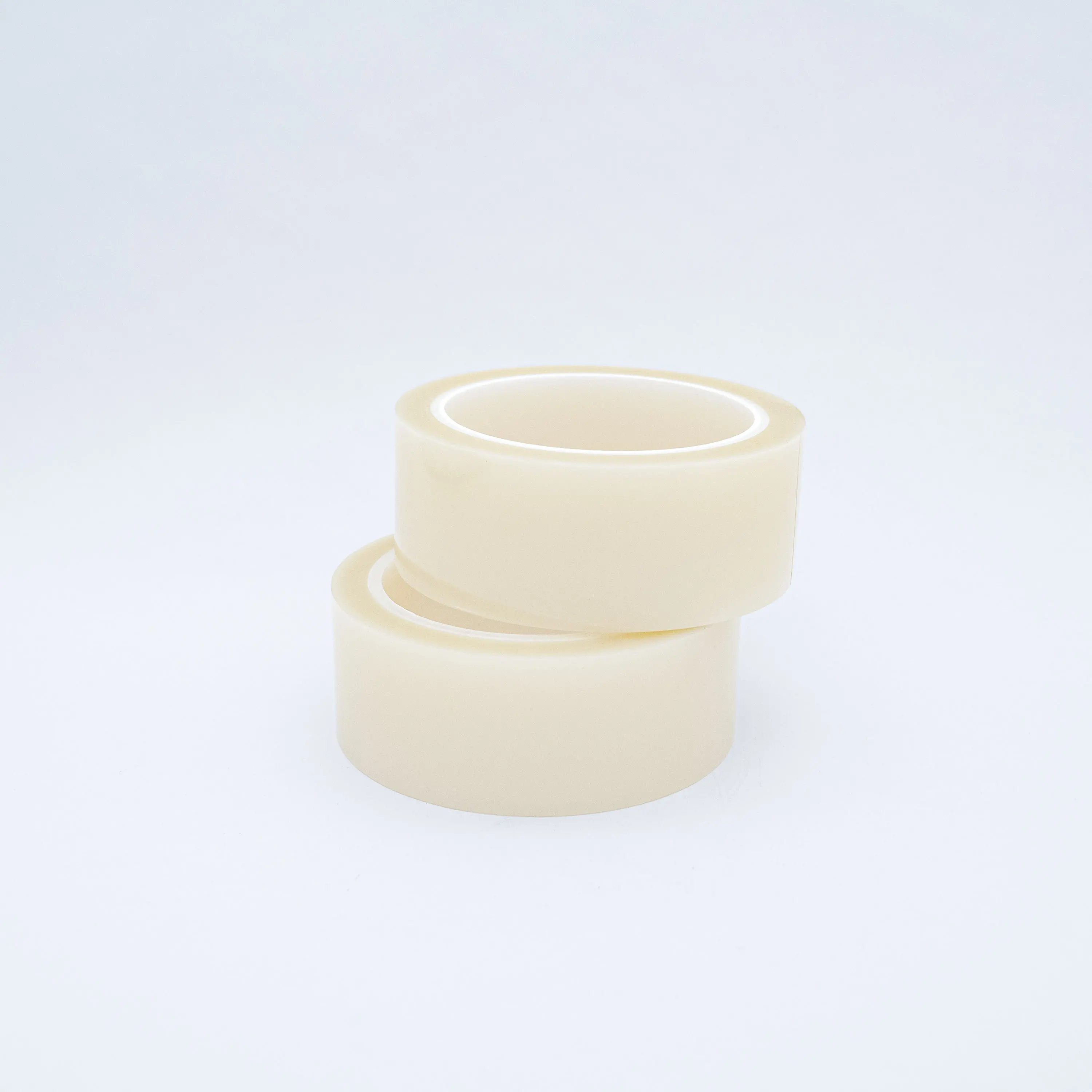

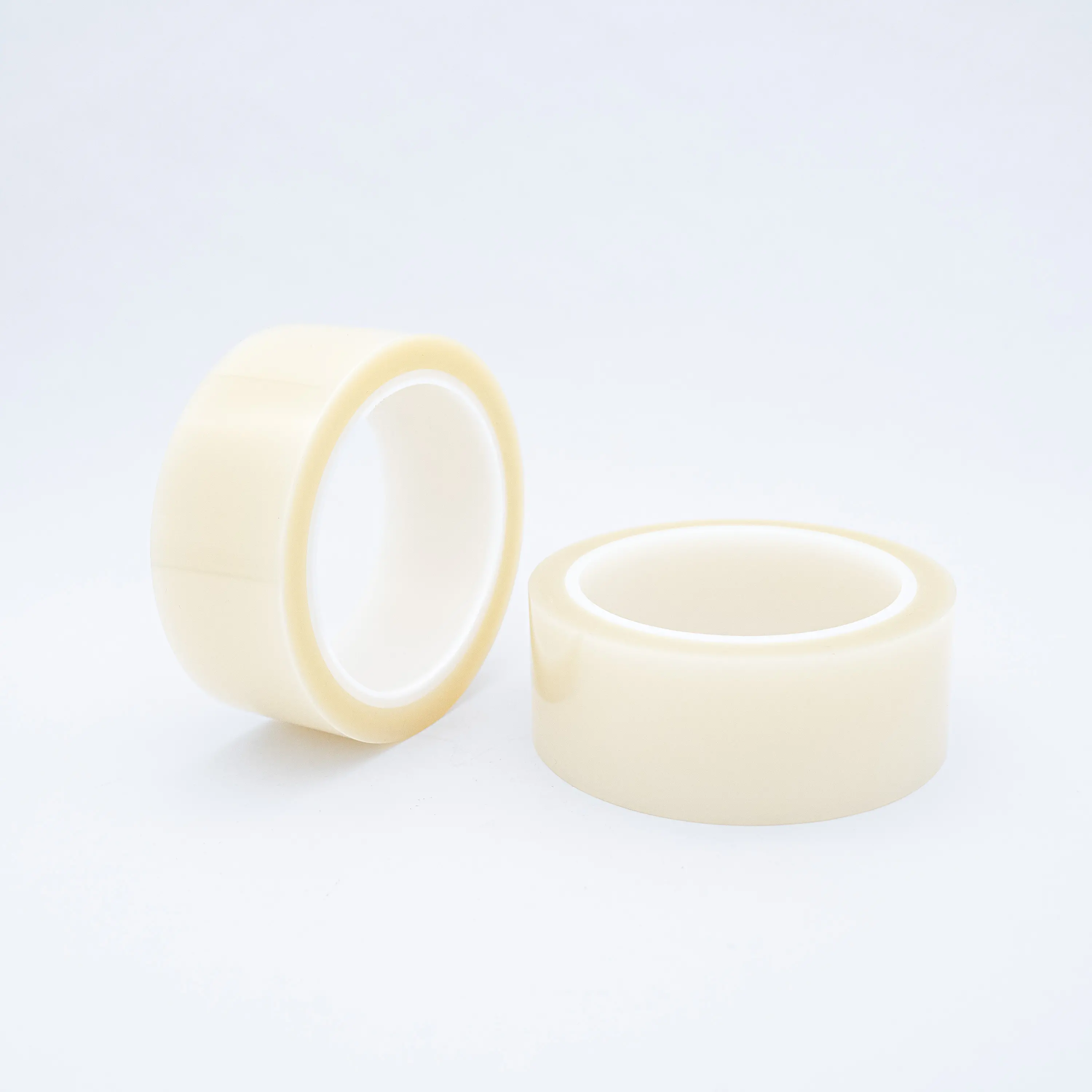

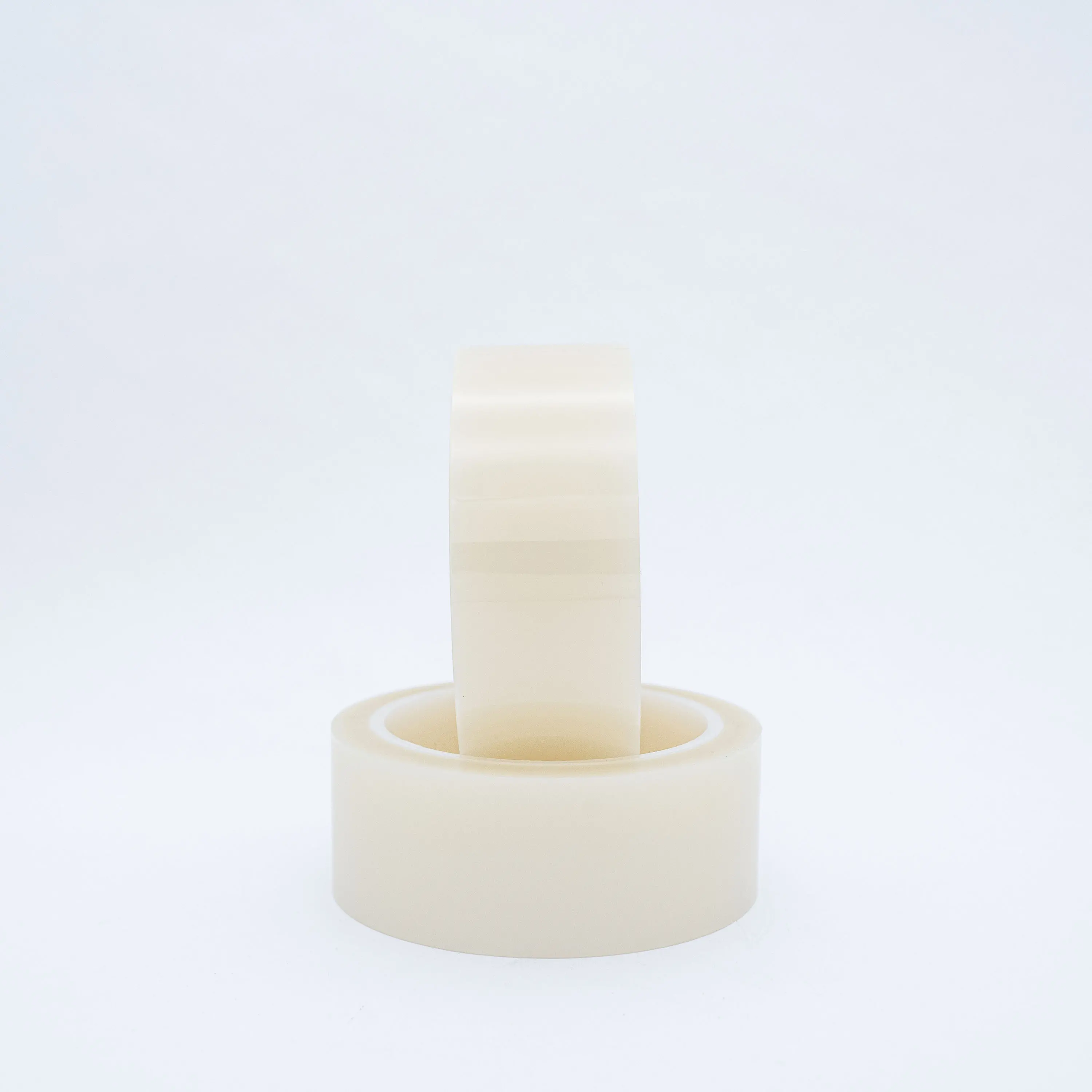

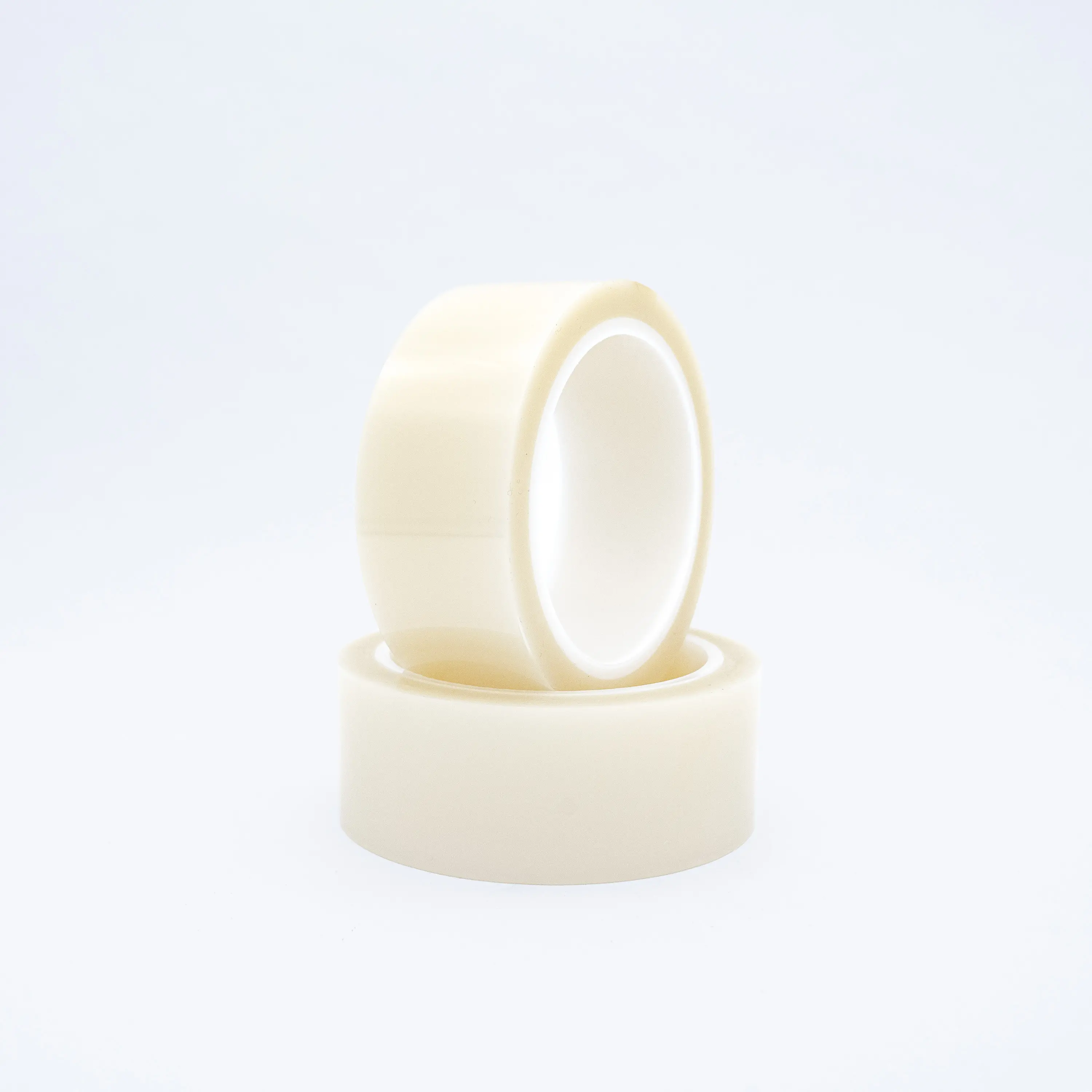

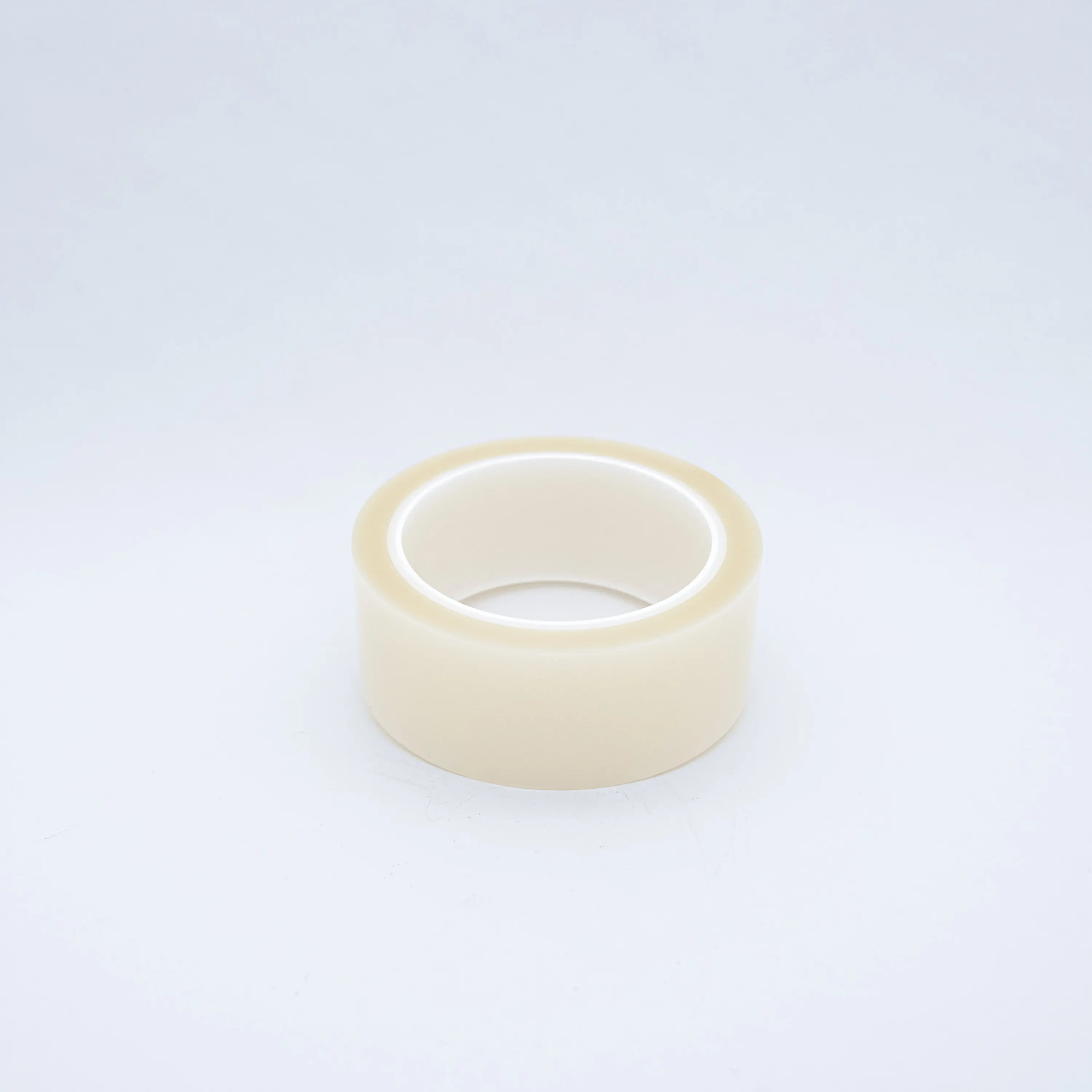

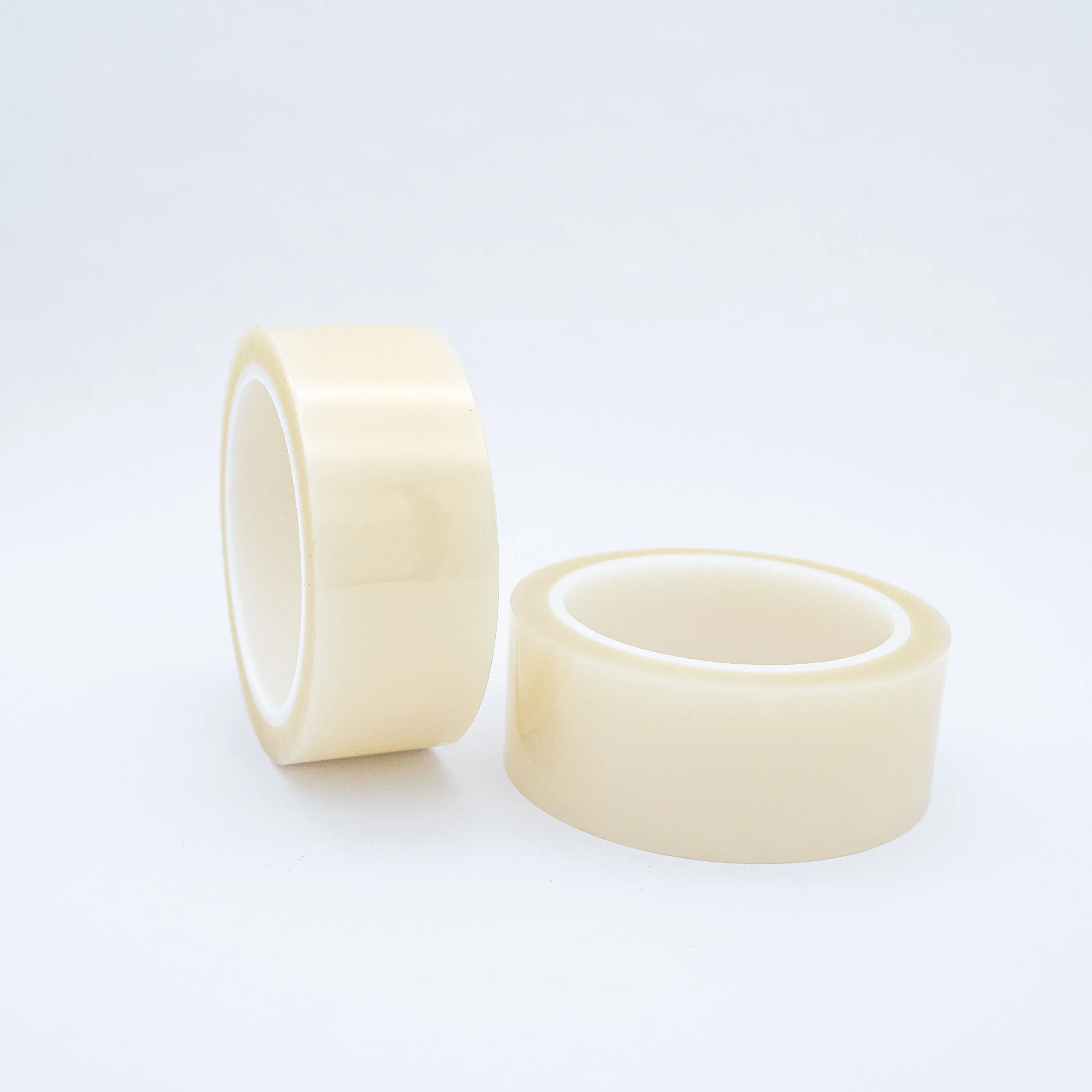

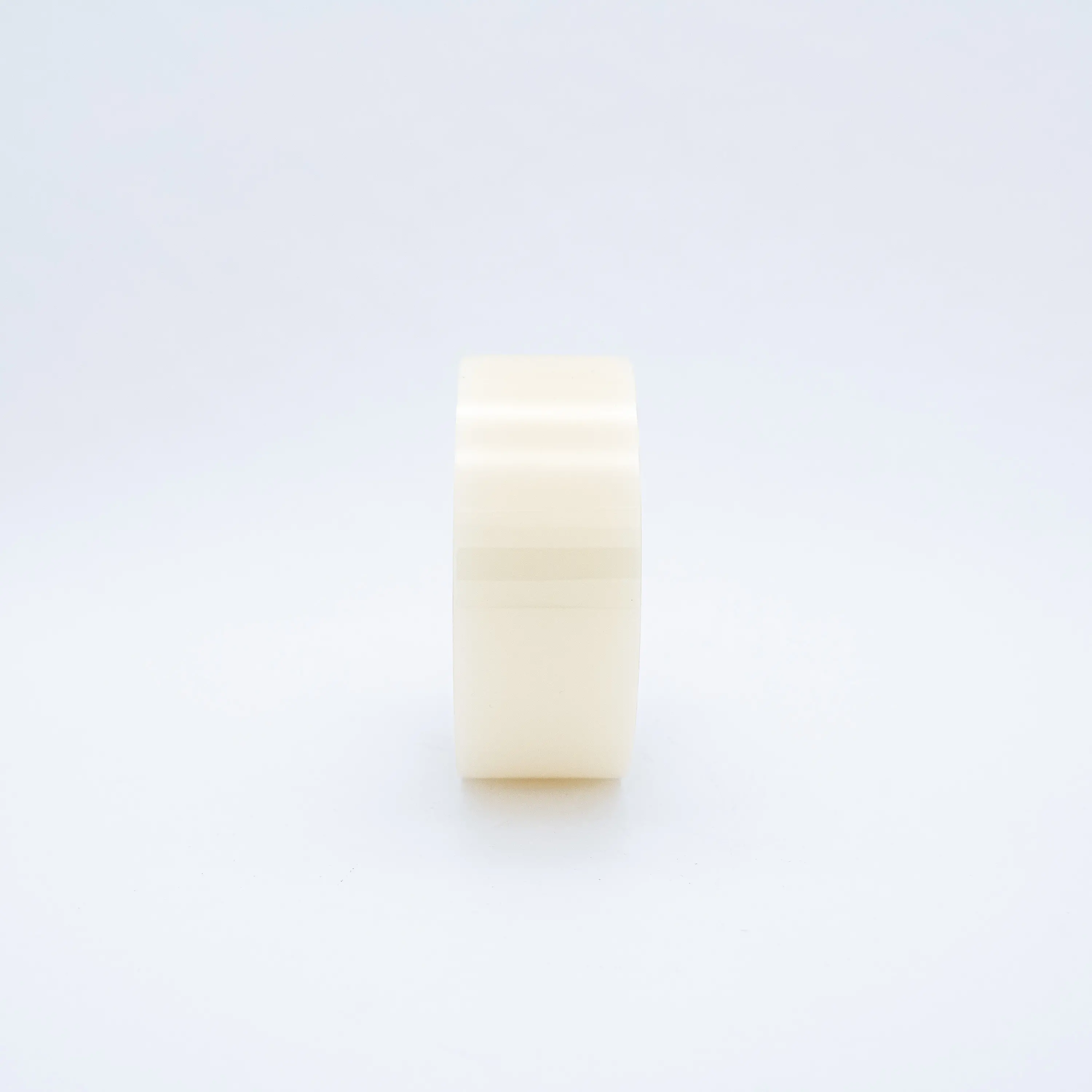

LED Matte High-Temperature Adhesive Tape MY12C9F-5
MY12C9F-5 utilizes a flexible 0.035mm PET (Polyester) film backing coated with a specialized silicone adhesive, resulting in a total thickness of 0.080mm. It boasts excellent physical properties, including a tensile strength of over 40 MPa and an elongation rate exceeding 60%. Designed specifically for elevated temperature environments, the tape offers superior heat resistance, maintaining its structural integrity and ensuring clean, residue-free removal even after 30 minutes of exposure to 130°C baking cycles.
Quick Specifications
| Item NO | Colour |
Colour (mm) |
Max Width (mm) |
Max Length (M) |
MOQ (m²) |
180° Peel Adhesion (N / 25mm) |
|---|---|---|---|---|---|---|
| MY12C9F-5 | Matte Clear | 0.080± 0.005 | 500 | 500~2000M ( can be customized) | 2000 | 6↑ |
Additional Specifications
| Backing Material | PET |
|---|---|
| Backing Thickness (mm) | 0.035 |
| Type of adhesive | Synthetic resin |
| Holding power (h) | 12↑ |
| Elongation at break (%) | 60↑ |
| Tensile strength(N/25mm) | 6↑ |
| Temperature resistance (℃/30mins) | 260 |
| Voltage resistance (kV) | 5 |
| Loop Tack Strength (N) | 2 |
Key Features
Comes off clean
Easy to remove
Excellent high temperature resistance
Our products comply with RoHS standards. Test reports are available upon request.
Storage Condition
Store at room temperature, away from light. The temperature should be 15-28℃, and the humidity should be 40%-70%.
Additional Information
The selection of high-temperature PET tapes should be matched to your actual processing conditions, including operating temperature, baking/processing time, specific substrate materials, and chemical resistance requirements. For an accurate model recommendation tailored to your process, please consult our sales engineers.
